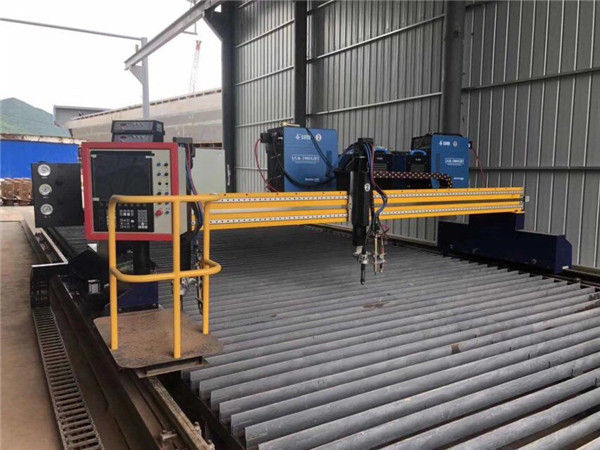

China Big Size CNC Gantry Flame Plasma Cutting Machine
لومړني معلومات


Cutting Thickness: 1-50mm
Cutting Speed: 0-5000mm/min
Voltage: AC220V
Gas: Oxygen
Working Material: Iron, Steel, Aluminum Sheets, Galvanized Sheets
Working Thickness: 0.5-30mm or Customize
Power: 8.5kw
Input Voltage: 380V 50Hz
کاري حالت: غیر ارق وهل ټکول
Transmit Way: Taiwan Imported Ball Screw
Rail Guide: Precision Work Round
Optional Power Source: America Hypertherm and Ame
Z Axis Travel: 0-70mm
Itam: CNC Plasma Metal Cutting Machine



د تولید ځانګړتیاوې


It is a kind of CNC cutting equipment with high efficiency and high precision, and can reduce labor intensity.
This machine uses gantry style, and has plasma or flame cutting style. It is easy to maintain and to operate, and it is reliable.
It has compact and rational construction, and the price is reasonable. It is more suitable for mediumsized and small enterprises to buy and use.



Main configuration and function introduction


# Strong drag chain--Traction and protection, smart high intensity, ametabolic rigidity, easy installation, use and reliable, easy yo tear open outfit.
# To protect the cable also make machine overall looks more beautiful
# Double heads--plasma cutter head can cut less than 40mm thickness( depends on power supply's current),
flame cutter head can cut 200mm thickness, can perfect meet your cutting demands
# Limit switch---Use it to control the workpiece movement or automatic feed, to avoid collision accident
# 24KGS guide rail--more stable
# Starfire cutting system and HYD auto arc voltage THC ---
The numerical control system with high disposes, the automatic striking arc, the performance is stable,Automatic height adjust system
---can according to your material planeness, cutting head can automatically stable, and fast adjust.



تخنیکي توضیحات


نهتوکیspecification
1ماډلFMP2030
2Horizontal track space3 م
3د کښت کولو مؤثره چوکۍ2m
4Longitudinal track space4 م
5د کښت کولو مؤثره اوږدوالی3 م
6د ریبلو سرعت20-25m/min
7دقیقه پری کول0.05 ملي میتر
8ضخامت قطع کول0-40mm--plasma cutter head
200mm--flame cutter head
9د ریبلو سیسټمStarfire cutting system (English)
10Arc height controlArc torch voltage height control
11Table structureWhole iron body, thick steel
12موټورJapan YASKAWA servo motor--3 sets
13Planet reducerJapan SHIMPO
14Motor power750w
15دلیږد لارهHigh precision rack gear
16لارښود ریلAll axis use HIWIN square rail
17Solenoid valveItaly CEME
18برښنا ترتیبونکیHypertherm MAXPRO200A
19Drawing softwareCAD
20د ځړولو سافټویرAustralia FASTCAM software
21Output wayArtcam, type3
22LCD display dimension10.4 inches
23د چلولو اکرد چلولو اکر
24د قد د تنظیم کولو آلهArc voltage height and Electric adjustable high
25Gas pressureMax. 0.1 Mpa
26Oxygen pressureMax. 0.7 Mpa
27Other partsOne set plasma nozzle sent for free



کاریال


They are widely used in ship, car, boiler pressure vessel, steel structure, plane, engineering machinery and other fields.
They use flame cutting to cut carbon steel, use plasma to cut stainless steel, aluminum, copper and other metal plates. They are especially fit for irregular drawing batch cutting.
